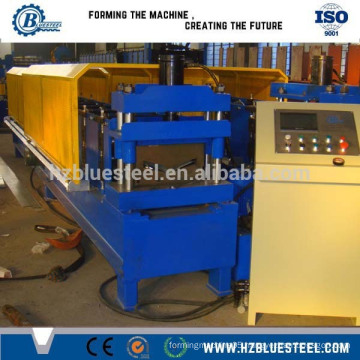

Corner Angle Cap Roll Forming Machine/ Corner Angle Making Machine
Basic Info

Model No.: bl ridge cap roll forming machine

Product Description Specification: Corner angle Roll Forming Machine, Ridge Cap Roll Forming Machine, metal vally flashing roll Forming Machine.   a. Our machine can produce these products and other profiles you like.   b. technical specification
                                          technical  specification
       main systems
1 decoiler feeding material by the strength yielded by roller part
2 adjustable device leveling the material
3 Roll Forming system form the profile you want
4 cutter cut the sheet at fixed length
5 PLC set length ,pieces and control the producing
6 run out table support the finished sheet
7 hydraulic station and motor supply the power
       components for choice
1 Hydraulic Decoiler
2 safety cover for safety
3 auto run out table support and move the finished product
        main parameters
1 feeding material color steel coil, aluminum,GI,PPGI
2 material thickness 0.2~1mm
3 material yield stress 230~550mpa
4 feeding width up to 1300mm
5 forming speed 2~8m/min
6 cutter material cr12
7 roller material 45# steel with chrome treatment
8 Cr plating thickness 0.05mm
9 roller station 11 pieces(according to different profiles)
10 controller  PLC , touch screen and button
11 hydraulic station motor power 3kw
12 hydraulic presure 12mpa
13 main motor power 7~8.5kw
14 voltage 380v 3ph 50hz / as your needs
15 total weight 3~5t
10 dimension 10 x 1.5 x 1.5m

  c. work flow Packaging & Shipping   FAQ    1.what is your delivery time? The delivery time varies according to the machine . If the profile and material are common ,time will be shorter .Otherwise we will spend more time on design and trial operation. Usually it is about 50 days after receiving the deposit. 2.Could you customize the machine for me? Yes, almost every machine we produce is as per customize's needs. We are experienced in that. 3.What is your advantage? We have about 12 years experience in metal roll roming machine line. Experienced engineers and workers will be helpful for quality control. 4.Do you use the newest technology? We adopt the newest technology both form China and foreign conturies to assure our products are of good quality and up to date. 5. What about your service? We provide one year warranty.In this period,we will supply the machine parts for free. After the warranty,we will supply machine parts at cost price all life long and we are always here to answear your questions and provide technology support.

Contact us if you need more details on Metal Roof Ridge Cap Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Roof Tile Ridge Cap Making Machine、Corner Angle Ridge Cap Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
